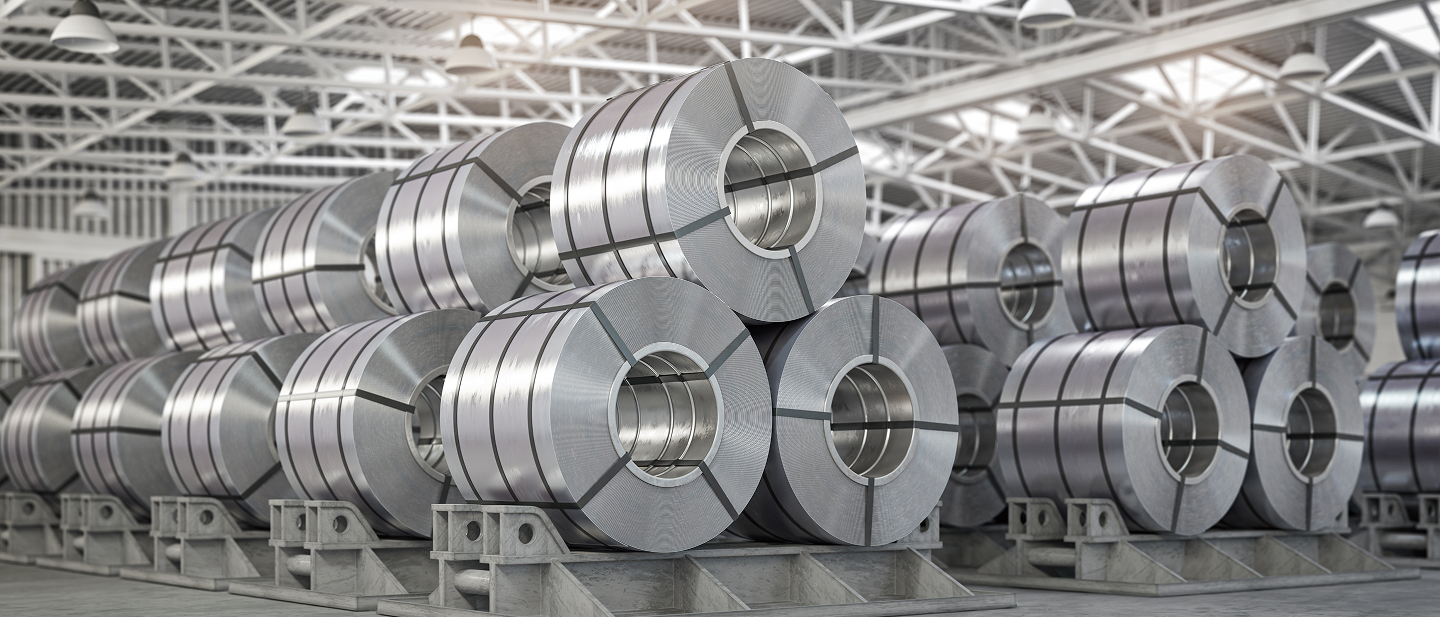

As a leading manufacturer of CRCA Cold Rolls and Sheets, we pride ourselves on delivering superior quality steel products that combine precision, durability, and performance.

From automotive to general engineering, the coils and sheets we manufacture set benchmarks for durability, versatility, and consistency. Our extensive product portfolio — including CRCA Cold Rolls, CRCA Sheets, reflects our unwavering commitment to excellence, empowering customers to achieve superior results and elevate their projects to new heights.

Regular Drawing Grades

Equialent Grades			Chemical Composition %					Mechanical Properties
IS:513:2016	JIS G 3141	EN 10130	C Max	Mn Max	S Max	P Max	Si Max	YS (Mpa Max)	TS (Mpa Max)	% Elongation Min	Hardness HRB Max
CR1	SPCC	DC01	0.12	1	0.035	0.05	0.05	280	270	28	65
CR2	SPCD	DC03	0.1	0.5	0.035	0.04	0.05	240	270	30	65
CR3	SPCE	DC04	0.08	0.45	0.03	0.03	0.03	220	270	34	57
CR4	SPCF	DC05	0.06	0.45	0.03	0.03	0.03	210	270	36	50
CR5	SPCG	DC06	0.02	0.25	0.02	0.02	0.02	190	270	38	40
		DC07	0.01	0.2	0.02	0.02	0.01	150	250	44	38

Grade	Thickness (mm)	Width (mm)
IS 513-D	0.25-2.5	0.25-2.5
IS 513-DD	0.25-2.5	0.25-2.5
IS 513-EDD	0.25-2.5	0.25-2.5
IF Steel	0.25-2.5	0.25-2.5
Si-Stamping Steel	0.50-0.51	0.50-0.51
NON-Si Steel	0.50-0.51	0.50-0.51
C-30	0.6-2.0	0.6-2.0
C-40	0.6-2.0	0.6-2.0
C-60	0.6-2.0	0.6-2.0
C-62	0.6-2.0	0.6-2.0
C-75	0.6-2.0	0.6-2.0
C-80	0.6-2.0	0.6-2.0

Equialent Grades			Chemical Composition %					Mechanical Properties
IS:513:2016	JIS G 3141	EN 10130	C Max	Mn Max	S Max	P Max	Si Max	YS (Mpa Max)	TS (Mpa Max)	% Elongation Min	Hardness HRB Max
CR1	SPCC	DC01	0.12	1	0.035	0.05	0.05	280	270	28	65
CR2	SPCD	DC03	0.10	0.50	0.035	0.04	0.05	240	270	30	65
CR3	SPCE	DC04	0.08	0.45	0.03	0.03	0.03	220	270	34	57
CR4	SPCF	DC05	0.06	0.45	0.03	0.03	0.03	210	270	36	50
CR5	SPCG	DC06	0.02	0.25	0.02	0.02	0.02	190	270	38	40
		DC07	0.01	0.20	0.02	0.02	0.01	150	250	44	38

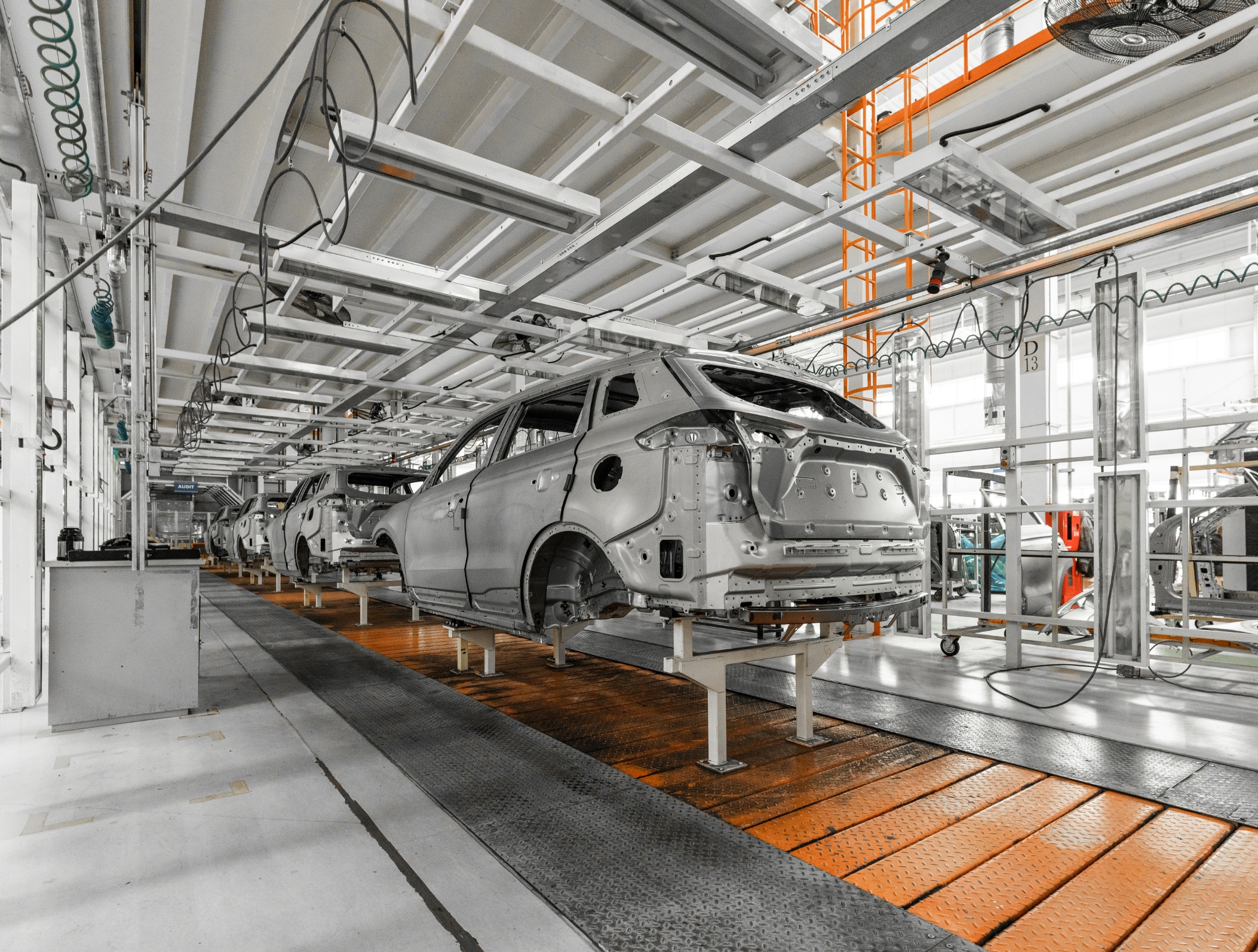

High Strength Steel Sheets and Strip for Automobile, Structural and General Engineering Purposes

Equivalent Grades		Chemical Composition					Mechanical Properties
JIS G 3135	EN 10268	C Max	Mn Max	S Max	P Max	Si	YS (Mpa Min)	TS (Mpa Max)	% Elongation Min
SPFC - 340	HC220	0.12	0.7	0.025	0.08	0.5	175	340	35
SPFC - 370	HC260LA	0.10	0.6	0.025	0.025	0.5	205	370	33
SPFC - 390	HC300LA	0.10	1.0	0.025	0.025	0.5	235	390	31
SPFC - 440	HC340LA	0.10	1.1	0.025	0.025	0.5	265	440	27
SPFC - 490	HC380LA	0.10	1.6	0.025	0.025	0.5	295	490	24
SPFC - 540	HC420LA	0.10	1.6	0.025	0.025	0.5	325	540	21
SPFC - 590		0.10		0.025	0.025	0.5	355	590

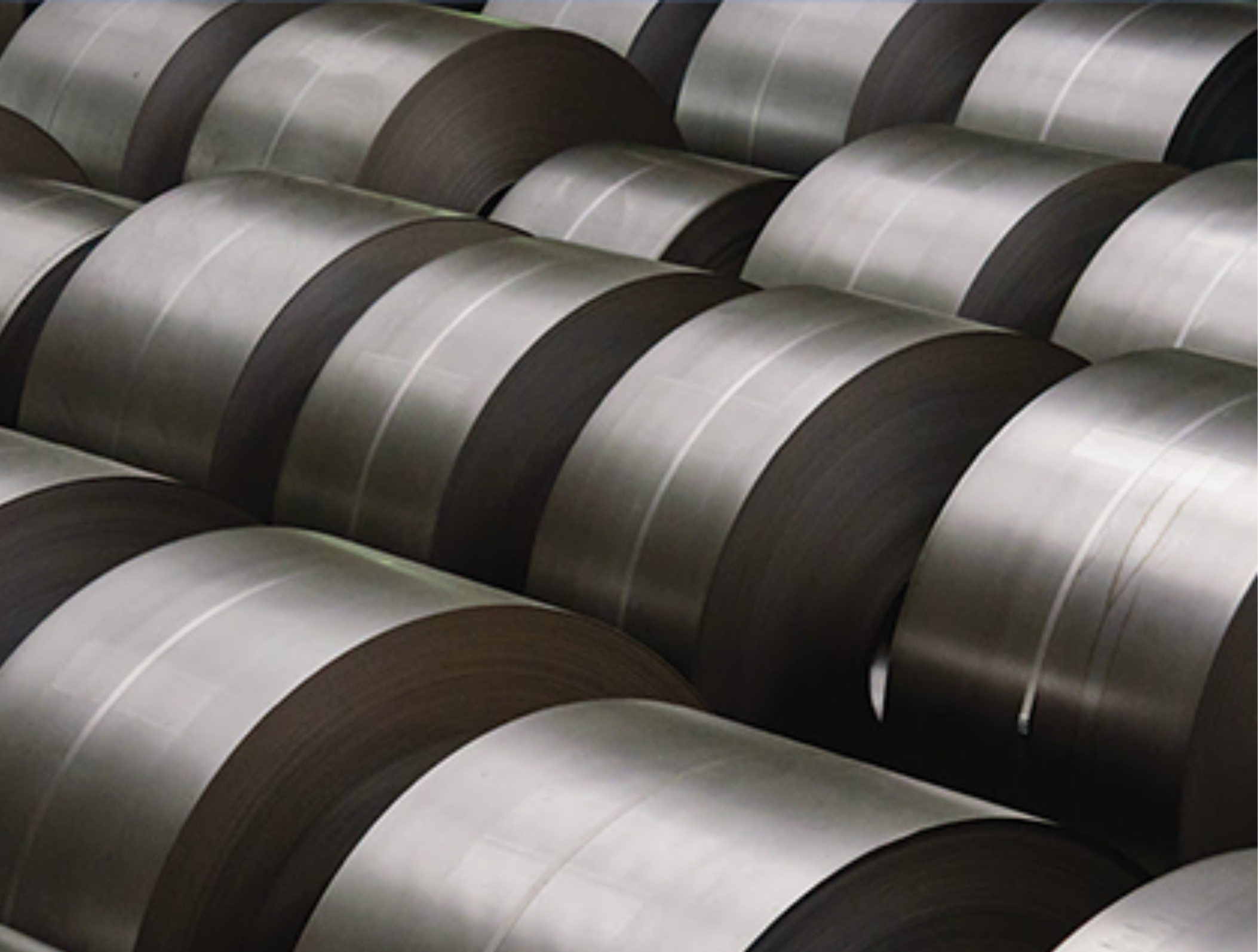

Medium and High Carbon Steel

Equivalent Grades			Chemical Composition					Mechanical Properties
ASTM			C	Mn	S Max	P Max	Si	YS (Mpa Min)	TS (Mpa Max)	% Elongation Min
SAE 1040	C 40	MC11	0.35 - 0.45	0.6 - 0.9	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1045	C 45		0.4 - 0.5	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1050	C 50		0.45 - 0.55	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1055	C 55	MC12	0.5 - 0.5	0.5 - 0.65	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1060	C 60		0.55 - 0.65	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1062	C 62		0.6 - 0.7	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1074	C 74		0.7 - 0.8	0.6 - 0.8	0.05	0.05	0.1 - 0.35	290	640	25
SAE 1080	C 80	IS:2507:1975	0.75 - 0.85	0.6 - 0.8	0.05	0.05	0.1 - 0.35	290	640	25
ST52.3	JIS SM 490A	E355	0.22 Max	1.6 Max	0.04	0.04	0.55	355	490	22
S550MC		EN 10149 -2	0.12 Max	1.8 Max	0.015	0.025	0.5	550	600 - 760	12
BSK46	E 46		0.12	0.8 - 1.4	0.025	0.03	0.25	460 - 560	500 - 640	21

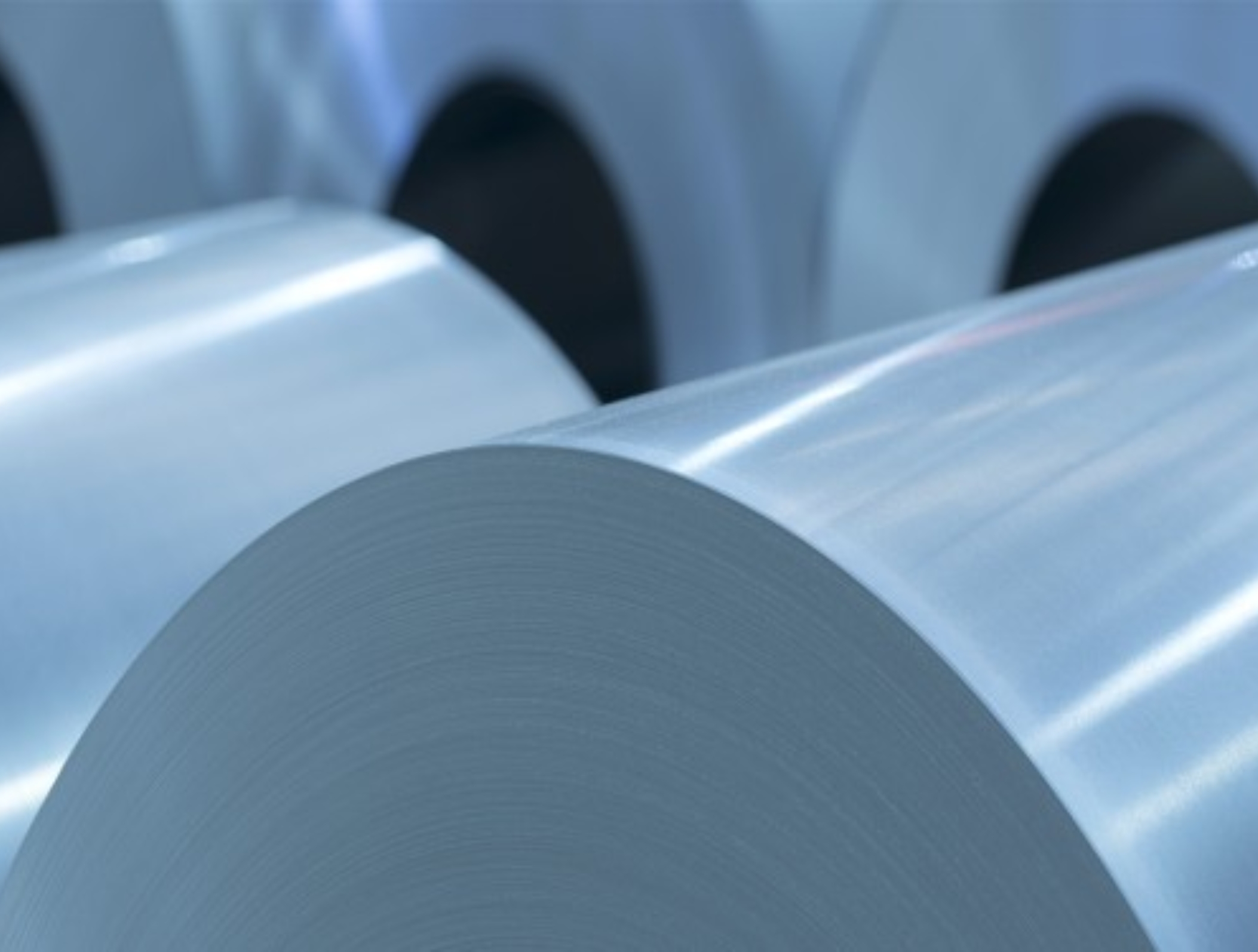

Semi Processed Steel for Electrical Stamping

Grades supplied are **50SP660D5** and **50SP890D5** with core losses and Magnetic polarisation mentioned in Test Certificates.
Equivalent Grades		Chemical Composition					Mechanical Properties
IS:15391:2003	EN 10126/165:1996	C Max	Mn Max	S Max	P Max	Si Max	YS (Mpa Max)	TS (Mpa Min)	% Elongation Min	Hardness VPN
		0.05	0.45	0.025	0.04	0.3	240	270	30	120 - 130

High Strength Steel Sheets and Strip for Automobile, Structural and General Engineering Purposes

Equivalent Grades		Chemical Composition					Mechanical Properties
JIS G 3135	EN 10268	C Max	Mn Max	S Max	P Max	Si	YS (Mpa Min)	TS (Mpa Max)	% Elongation Min
SPFC - 340	HC220	0.12	0.7	0.025	0.08	0.5	175	340	35
SPFC - 370	HC260LA	0.10	0.6	0.025	0.025	0.5	205	370	33
SPFC - 390	HC300LA	0.10	1.0	0.025	0.025	0.5	235	390	31
SPFC - 440	HC340LA	0.10	1.1	0.025	0.025	0.5	265	440	27
SPFC - 490	HC380LA	0.10	1.6	0.025	0.025	0.5	295	490	24
SPFC - 540	HC420LA	0.10	1.6	0.025	0.025	0.5	325	540	21
SPFC - 590		0.10		0.025	0.025	0.5	355	590

Medium and High Carbon Steel

Equivalent Grades			Chemical Composition					Mechanical Properties
ASTM			C	Mn	S Max	P Max	Si	YS (Mpa Min)	TS (Mpa Max)	% Elongation Min
SAE 1040	C 40	MC11	0.35 - 0.45	0.6 - 0.9	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1045	C 45		0.4 - 0.5	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1050	C 50		0.45 - 0.55	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1055	C 55	MC12	0.5 - 0.5	0.5 - 0.65	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1060	C 60		0.55 - 0.65	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1062	C 62		0.6 - 0.7	0.6 - 0.8	0.05	0.05	0.1 - 0.35	270	590	30
SAE 1074	C 74		0.7 - 0.8	0.6 - 0.8	0.05	0.05	0.1 - 0.35	290	640	25
SAE 1080	C 80	IS:2507:1975	0.75 - 0.85	0.6 - 0.8	0.05	0.05	0.1 - 0.35	290	640	25
ST52.3	JIS SM 490A	E355	0.22 Max	1.6 Max	0.04	0.04	0.55	355	490	22
S550MC		EN 10149 -2	0.12 Max	1.8 Max	0.015	0.025	0.5	550	600 - 760	12
BSK46	E 46		0.12	0.8 - 1.4	0.025	0.03	0.25	460 - 560	500 - 640	21

Semi Processed steel for Electrical Stamping

Grades supplied are **50SP660D5** and **50SP890D5** with core losses and Magnetic polarisation mentioned in Test Certificates.
Equivalent Grades		Chemical Composition					Mechanical Properties
IS:15391:2003	EN 10126/165:1996	C Max	Mn Max	S Max	P Max	Si Max	YS (Mpa Max)	TS (Mpa Min)	% Elongation Min	Hardness VPN
		0.05	0.45	0.025	0.04	0.3	240	270	30	120 - 130
